In Cubase, the Native Instruments software is used via the VST plug-in interface. In order to use your NI plug-ins in Cubase, you must ensure Cubase scans the folders where your NI VST plug-ins are located. This article describes this procedure for both OS X and Window systems.
On an OS X computer all VST files are automatically installed to the same folder so you do not need to define a VST folder during the installation of your NI product. The VST plug-in folder is located here:
- Macintosh HD > Library > Audio > Plug-Ins > VST
Cubase automatically scans this
folder at each startup and will recognize any new plug-in that has been installed.
Installing the NI VST Plug-ins
On a Windows computer, the VST versions of the software can be installed to any location on your hard drive. We strongly recommend to use the default installation path offered by the installer, both for the 32-bit and the 64-bit versions of the plug-in:
- 32-bit plug-ins: C: > Program Files > Native Instruments > VSTPlugins 32 bit
- 64-bit plug-ins: C: > Program Files > Native Instruments > VSTPlugins 64 bit
If you are installing a current NI product, you can set the installation paths for the plug-ins in Native Access. Read this article to learn how to change your plug-in installation locations in Native Access.
If you are installing a NI legacy product, the product's installer will ask you to select a destination folder for both your 32 bit and 64 bit VST plug-ins during the installation process:
Adding the NI Plug-in Folder in Cubase 8
No matter where you installed your VST plug-ins, you need to define the correct VST folder in Cubase to make sure that this location is scanned by Cubase at startup. It is important to keep in mind that if you use the 64-bit version of Cubase, you must add the folder where you have installed the 64-bit versions of your NI plug-ins and, respectively, if you use the 32-bit version of Cubase, you must add the folder where you have installed the 32-bit versions of your NI plug-ins.
Follow the steps below to add your NI VST folder to Cubase 8:

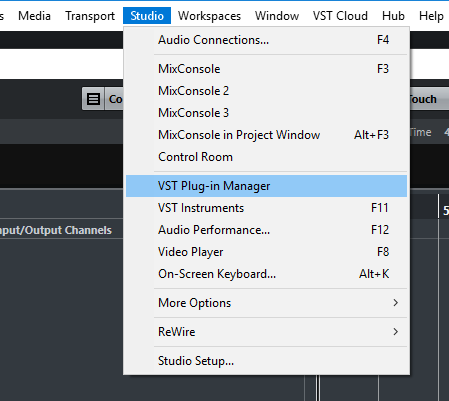

- Start Cubase, open the Devices menu and select the entry Plug-in Manager.

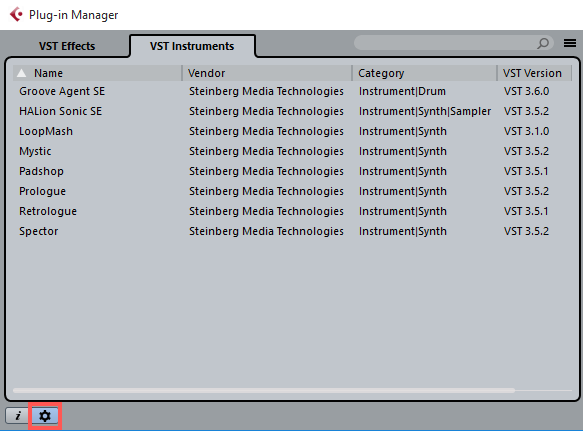

- In the lower left corner of the Plug-in Manager window, open the Plug-in Manager Settings by clicking the cogwheel icon.
- In the Plug-in Manager Settings window, click on the Add Path button.

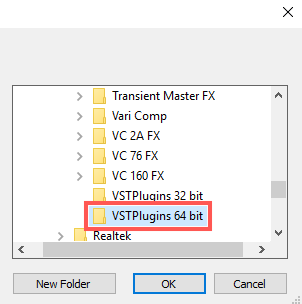

- Select the folder where your plug-ins are located on your hard drive and press the OK button to proceed. In our example, we select the default Native Instruments 64-bit plug-ins folder VSTPlugins 64 bit, since we are using the 64-bit version of Cubase. If we were using the 32-bit version of Cubase, we would have chosen the VSTPlugins 32 bit folder instead.

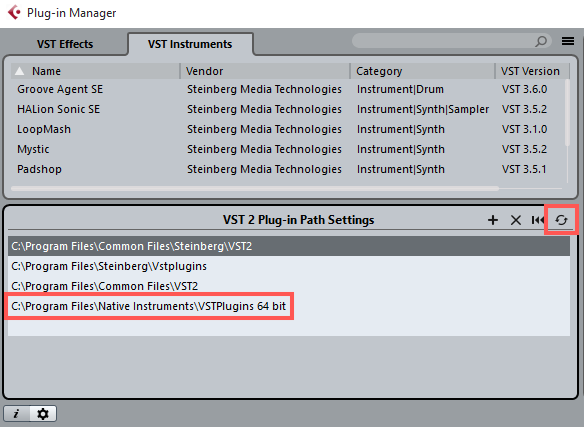

- The new path is now listed in Cubase's plug-in paths. Press the Rescan All Paths button to rescan the folders listed in the Plug-in Manager Settings.
- Cubase notifies that
new plug-ins have been recognized. Press OK to proceed.
- Your NI Plug-ins are now listed in the Plug-in Manager window. Instruments like REAKTOR, KONTAKT or MASCHINE will be listed in the VST Instruments tab and effects like GUITAR RIG, DRIVER, etc. in the VST Effects tab.
Additionally, the Plug-in Manager window provides
information on the installed plug-ins which can be useful for troubleshooting technical issues. Follow the steps below to obtain information on your NI plug-in.

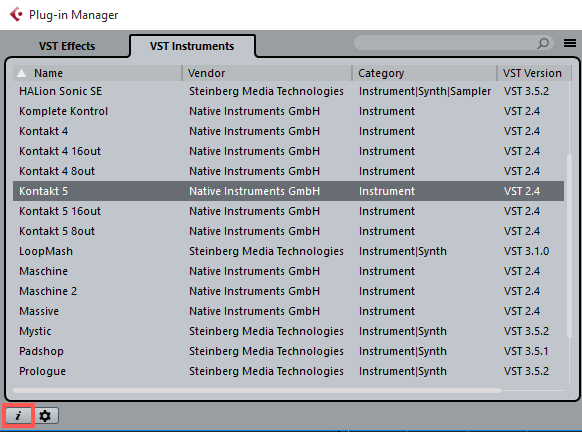

- Select the plug-in you want to obtain information on by clicking its name on the list. Once selected, press the Show Plug-in Information ('info') button on the lower left part of the Plug-in Manager window. In our example, we want to obtain information on the Kontakt 5 plug-in.

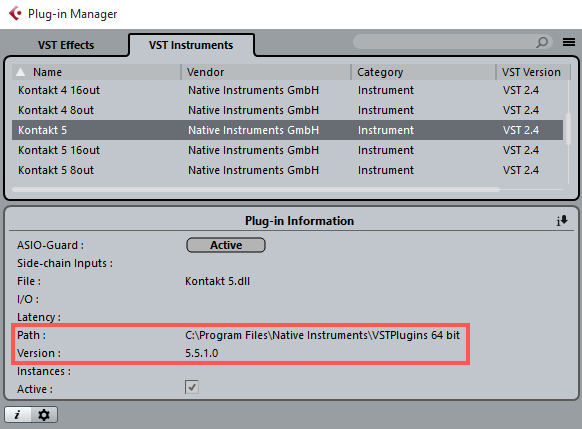

- In the Plug-in Information field, you will find useful information such as the exact version number of the plug-in and the path Cubase uses to load the plug-in. This field is useful for example to verify if the plug-in version matches the standalone version. If you notice there is a version mismatch with the version number which you see in Service Center's Overview section, please read our article on How to Resolve Issues with NI Plug-ins Using the NI VST Tool.
